Stainless Steel Wire Mesh for Petroleum
Posted:Oct 20, 2022        Views:380        Back to List

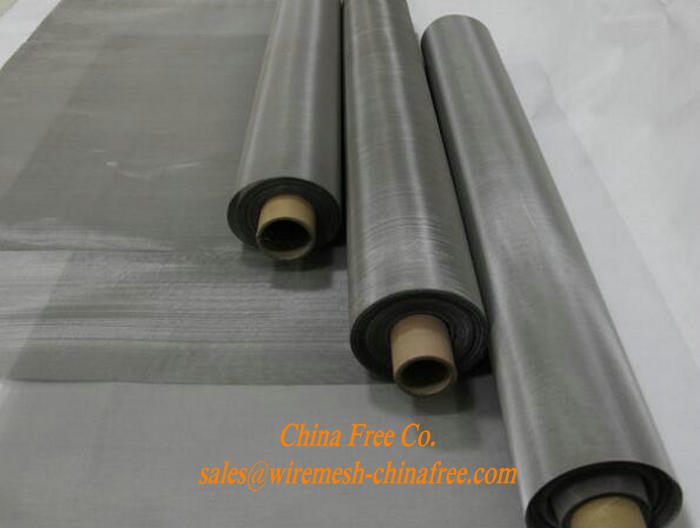

Stainless steel wire mesh mainly used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
Petroleum filter is divided into textile fiber oil filter and metal oil filter. Machines that install oil filters are called filters and are used to filter things like natural water and food.

Various weaving types of Stainless steel mesh for petroleum:
Plain weave:
Each warp wire and each weft wire passes over and under the next adjacent wire.
Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth.

Twill dutch weave:
It is the extension of the twill weave, each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. the wire diameter of warp wire is larger than weft wire, the mesh count in the weft direction is greater than the warp direction. dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved.
Twill dutch weave is capable of supporting greater loads than the dutch weave. It has finer openings than the twilled weave. It is used for filtering heavy materials.

Reverse dutch weave woven wire cloth:
Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.
